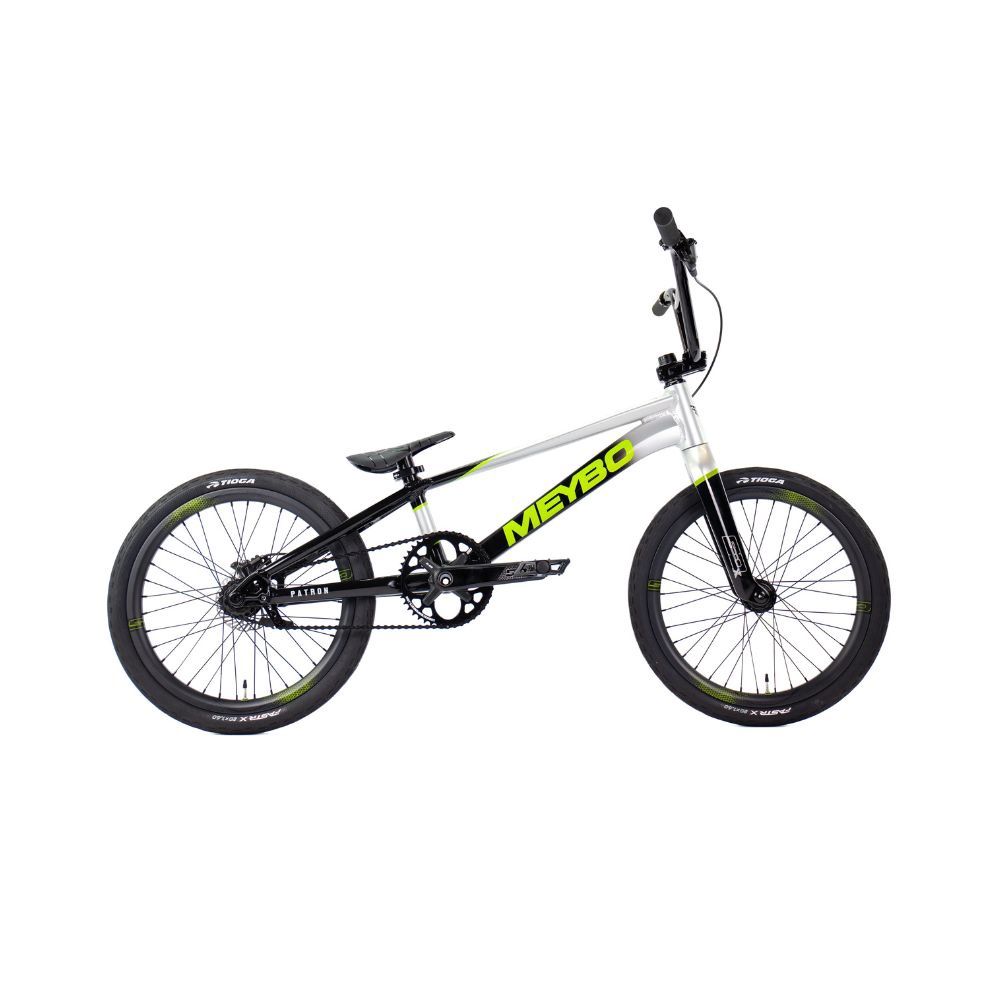

Meybo 2026 Patron Bike Black/Grey/Lime
The 2026 Meybo Patron is a world cup ready race bike, engineered for pure speed.
When fractions of a second separate champions from the pack, you need a bike that delivers uncompromising performance. The 2026 Meybo Patron is a top-tier, race-proven BMX bike designed for riders who demand precision, power, and podium-worthy speed.
MEYBO PATRON 2025
Discover the new Meybo Patron 2025, a premium complete BMX Race bike designed for performance.
This year, the Patron features several upgrades, including a Meybo HSX Alu frame, replacing the Meybo Holeshot frame from the 2024 model, and an SD Carbon V2 fork. The rest of the bike retains its many high-end components, selected for their dynamism and reliability, including a Shimano MT501 braking system, Tioga Fastr-X tires, and numerous other parts designed for top-level BMX Racing.
The Patron range is designed to fit every rider's morphology. Depending on the bike size, each component is carefully chosen to provide the best possible riding experience.
As you've guessed, the Patron is competition-ready. It’s the ideal machine to fly over the most demanding tracks on the global circuit and beat the stopwatch.
SPECIFICATIONS
- Frame : Meybo HSX Alloy Expert
- Fork: SD Carbon V2 1-1/8" 10mm
- Headset : FSA Sealed Bearings Fully Integrated 1-1/8”
- Handlebars : SD Aluminium Expert
- Stem : SD - 100% CNC Machined 1-1/8” - 50mm
- Grips : SD - Lock-On 130mm
- Brake Kit : Shimano MT501 - Hydraulic Brake
- Front Hub : SD Ace Expert - 36H - 8mm Bolts
- Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
- Rims : SD M83 20x 1"-3/8 Carbon - 25mm
- Tires : Tioga Fastr-X - 20x1-3/8"
- Crankset : SD Expert 4-lite - 4 Bolt - 160mm
- Pedals : Wellgo B-219 - Sealed Bearings - CNC Machined Platform
- Bottom Bracket : SD Hollow EB24 - 24mm - Euro/BSA
- Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 39T - Black
- Cog : 16T
- Chain : KMC K1 3/32 Silver/Black
- Chain Tensioners : Integrated
- Seat : Box Two Mini - 25.4mm
- Seat Clamp : SD QR - 28.6mm
SPECIFICATIONS
- Frame : Meybo HSX Alloy Expert XL
- Fork: SD Carbon V2 1-1/8" 10mm
- Headset : FSA Sealed Bearings Fully Integrated 1-1/8”
- Handlebars : SD Aluminium Expert XL
- Stem : SD - 100% CNC Machined 1-1/8” - 50mm
- Grips : SD - Lock-On 130mm
- Brake Kit : Shimano MT501 - Hydraulic Brake
- Front Hub : SD Ace Expert - 36H - 8mm Bolts
- Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
- Rims : SD M83 20x 1"-3/8 Carbon - 25mm
- Tires : Tioga Fastr-X - 20x1-3/8"
- Crankset : SD Expert 4-lite - 4 Bolt - 165mm
- Pedals : Wellgo B-219 - Sealed Bearings - CNC Machined Platform
- Bottom Bracket : SD Hollow EB24 - 24mm - Euro/BSA
- Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 40T - Black
- Cog : 16T
- Chain : KMC K1 3/32 Silver/Black
- Chain Tensioners : Integrated
- Seat : Box Two Mini - 25.4mm
- Seat Clamp : SD QR - 28.6mm
SPECIFICATIONS
- Frame : Meybo HSX Alloy Pro 21.5"
- Fork: SD Carbon V2 Pro Tapered 20mm 1-1/8" - 1.5"
- Headset : FSA Sealed Bearings Fully Integrated 1-1/8” - 1.5"
- Handlebars : SD Cr-Mo 7.5"
- Stem : SD - 100% CNC Machined 1-1/8” - 50mm
- Grips : SD - Lock-On 130mm
- Brake Kit : Shimano MT501 - Hydraulic Brake
- Front Hub : SD Ace Pro - 36H - 20mm
- Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
- Rims : SD Carbon M58 V2 - 20x1.75" - 25mm
- Tires : Tioga Fastr-X - 20x1.60"
- Crankset : SD Pro Hollow - 4 Bolt - 170mm
- Pedals : Wellgo LU-313 - Sealed Bearings
- Bottom Bracket : SD Hollow BB30 - 24mm - Euro/BSA
- Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 43T - Black
- Cog : 16T
- Chain : KMC K1 3/32 Silver/Black
- Chain Tensioners : Integrated
- Seat : Box Two Pro - 27.2mm
- Seat Clamp : SD QR - 31.8mm
SPECIFICATIONS
- Frame : Meybo HSX Alloy Pro 22"
- Fork: SD Carbon V2 Pro Tapered 20mm 1-1/8" - 1.5"
- Headset : FSA Sealed Bearings Fully Integrated 1-1/8” - 1.5"
- Handlebars : SD Cr-Mo 8"
- Stem : SD - 100% CNC Machined 1-1/8” - 50mm
- Grips : SD - Lock-On 130mm
- Brake Kit : Shimano MT501 - Hydraulic Brake
- Front Hub : SD Ace Pro - 36H - 20mm
- Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
- Rims : SD Carbon M58 V2 - 20x1.75" - 25mm
- Tires : Tioga Fastr-X - 20x1.75"
- Crankset : SD Pro Hollow - 4 Bolt - 175mm
- Pedals : Wellgo LU-313 - Sealed Bearings
- Bottom Bracket : SD Hollow BB30 - 24mm - Euro/BSA
- Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 44T - Black
- Cog : 16T
- Chain : KMC K1 3/32 Silver/Black
- Chain Tensioners : Integrated
- Seat : Box Two Pro - 27.2mm
- Seat Clamp : SD QR - 31.8mm
SPECIFICATIONS
- Frame : Meybo HSX Alloy Pro 22.5"
- Fork: SD Carbon V2 Pro Tapered 20mm 1-1/8" - 1.5"
- Headset : FSA Sealed Bearings Fully Integrated 1-1/8” - 1.5"
- Handlebars : SD Cr-Mo 8"
- Stem : SD - 100% CNC Machined 1-1/8” - 50mm
- Grips : SD - Lock-On 130mm
- Brake Kit : Shimano MT501 - Hydraulic Brake
- Front Hub : SD Ace Pro - 36H - 20mm
- Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
- Rims : SD Carbon M58 V2 - 20x1.75" - 25mm
- Tires : Tioga Fastr-X - 20x1.75"
- Crankset : SD Pro Hollow - 4 Bolt - 175mm
- Pedals : Wellgo LU-313 - Sealed Bearings
- Bottom Bracket : SD Hollow BB30 - 24mm - Euro/BSA
- Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 44T - Black
- Cog : 16T
- Chain : KMC K1 3/32 Silver/Black
- Chain Tensioners : Integrated
- Seat : Box Two Pro - 27.2mm
- Seat Clamp : SD QR - 31.8mm
SPECIFICATIONS
- Frame : Meybo HSX Alloy Cruiser Pro 22"
- Fork: SD Carbon V2 Pro Tapered 20mm 1-1/8" - 1.5"
- Headset : FSA Sealed Bearings Fully Integrated 1-1/8” - 1.5"
- Handlebars : SD Cr-Mo 5.75"
- Stem : SD - 100% CNC Machined 1-1/8” - 50mm
- Grips : SD - Lock-On 130mm
- Brake Kit : Shimano MT501 - Hydraulic Brake
- Front Hub : SD Ace Pro - 36H - 20mm
- Rear Hub : SD Ace HSX 15mm 36H - 6 Pawls - 180 Engagement Points
- Rims : SD Carbon M58 V2 - 24x1.75" - 25mm
- Tires : Tioga Fastr-X - 24x1.75"
- Crankset : SD Pro Hollow - 4 Bolt - 175mm
- Pedals : Wellgo LU-313 - Sealed Bearings
- Bottom Bracket : SD Hollow BB30 - 24mm - Euro/BSA
- Chainring : SD - CNC Aluminum 6061 - 4 Bolt - 41T - Black
- Cog : 18T
- Chain : KMC K1 3/32 Silver/Black
- Chain Tensioners : Integrated
- Seat : Box Two Pro - 27.2mm
- Seat Clamp : SD QR - 31.8mm
